Example: 12-inch tile with narrow joints
For 120 ft² of 12 × 12 in tiles, joints 1/8 in wide and 1/4 in deep, the model gives 0.052083 ft³ before allowance. At 10% extra this becomes 0.057292 ft³. An illustrative package yield of 0.1 ft³ gives one package after rounding. With the same joints and 6 × 6 in tile, modeled volume doubles to 0.114583 ft³ including allowance, requiring two such packages.
Collect the dimensions that control volume

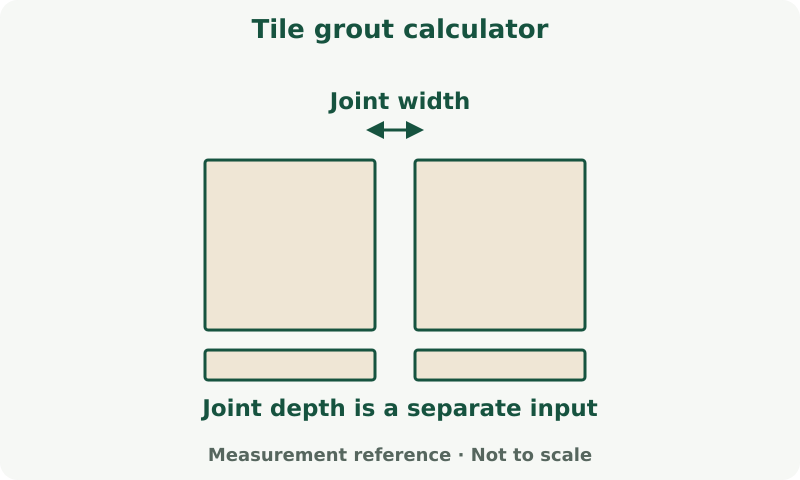

Record floor area, actual tile length and width, joint width and the depth to be filled. Tile dimensions and joint dimensions must use the units shown beside the fields. A fractional inch accidentally entered as a whole inch can multiply the estimate many times.
For several tile formats or joint widths, create separate takeoffs. A single average tile size can conceal the extra joint length in a mosaic border. Deduct ungrouted areas deliberately and record whether the estimate covers floors, walls or both.
Understand the geometry behind the result
The tool estimates joint volume from tiled area multiplied by joint width, joint depth and the ratio (tile length + tile width) ÷ (tile length × tile width), with unit conversions applied. It is a regular rectangular-grid approximation. Irregular stone edges and shaped tiles may require a product-specific method.
Holding floor area and joint dimensions constant, reducing both tile dimensions increases the ratio and therefore the estimated grout. Doubling joint width approximately doubles the result within this model. Those relationships explain why copying a previous room’s bags per square foot can be misleading.
Use a documented product yield
The bag-yield field is a volume of usable grout, not its package mass. A kilogram or pound cannot be entered directly as a litre or cubic foot. If the product documentation only supplies a coverage table, use its matching row or obtain the relevant yield rather than inventing a density.
MAPEI’s grout calculator uses product and joint inputs. Compare the chosen manufacturer’s estimate with the geometry and investigate a material difference in assumptions. Premixed and cement-based products should not share an unverified generic bag-volume value.
Keep joint finishing and purchase rounding separate
Add the stated allowance before rounding to whole packages. Do not multiply a manufacturer’s complete coverage result by a second unexplained overage. Where compatible areas use the same product and colour, review their combined requirement before ordering to understand package-rounding surplus.
Keep flexible sealant joints, mortar beneath the tile and any sealer separate from grout. The geometric calculator cannot identify where those different materials belong. Product selection, joint detailing and cleaning methods come from the specified installation system, not from the calculated number of bags.
Do it in order
- Record tile size and the actual joint width and filled depth.
- Separate different formats and grout products.
- Enter a documented usable volume per package.
- Apply one allowance and round the final requirement.
Planning boundary
This is a regular-joint volume approximation and does not choose grout type, joint detailing or product compatibility.
Sources checked
Why do smaller tiles need more grout?
They create more joint length per unit of tiled area. Joint width and depth still have to remain the same for that comparison.
Can a 5 kg bag be entered as five litres?
No. Obtain a product-specific usable yield or use the manufacturer’s coverage method; mass and volume are different quantities.
