Example: 30 ft of ridge and 40 ft of hips
The combined measured run is 70 ft, or 21.336 m. With an illustrative 10% allowance, demand is 77 ft, or 23.4696 m. At an assumed usable coverage of 20 ft per bundle, 77 ÷ 20 = 3.85, rounded to four bundles. The 20 ft value is an example input, not a statement about every cap product.

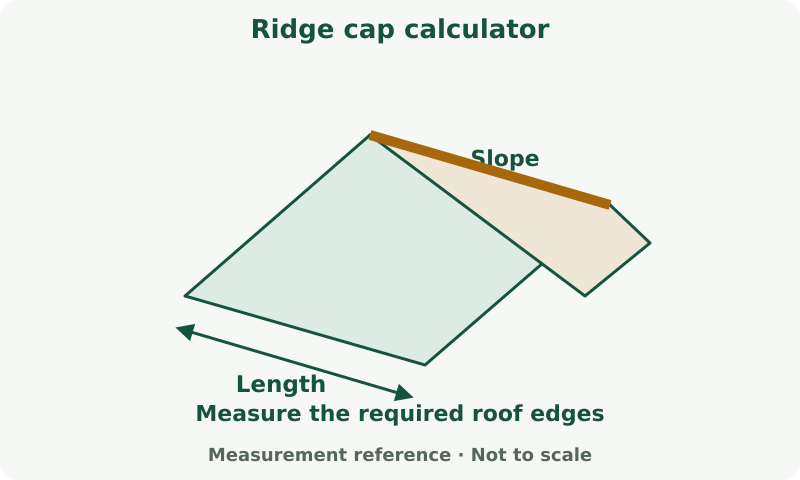

Trace the cap runs on the roof plan
Mark each ridge and hip that receives this product. Give each run a label so shared endpoints do not turn into duplicate lengths. Keep valleys and other junctions separate; their treatment is not automatically the same as a hip or ridge cap.
A sloping hip length is not simply its horizontal plan projection. Obtain the actual surface length from the roof geometry or the approved measurement record. Use drawings or a safe professional survey instead of treating this quantity task as a reason to access an unprotected roof.
Read usable coverage for the actual cap product
GAF explains that bundle coverage depends on the cap product and installation overlap. Use the published usable linear coverage for the product being purchased, not the total length of loose pieces placed end to end. Record the product code and coverage unit with the estimate.
Do not assume that a field-shingle bundle and a cap-shingle bundle have the same coverage basis. The field quantity uses roof area; the cap quantity uses run length. A changed cap selection may change bundle count even when the measured roof geometry remains identical.
Apply only the remaining allowance
Usable bundle coverage generally reflects the product’s intended exposure or overlap basis. If that deduction is already included, do not add it again as a generic overlap percentage. Document any additional cutting or starter allowance separately and use the installation instructions to determine what is required.
Keep unlike products on different lines, including any special detail piece that cannot be substituted by ordinary cap material. The calculator combines ridge and hip length under one coverage input, so use separate runs when their specified products or coverage differ.
Check the rest of the roof accessory order
Ridge vent, starter strips, field shingles, fasteners and edge details remain independent items. A cap bundle count neither sizes ventilation nor confirms that a roof assembly is compatible. Review the complete accessory schedule before placing an order so a missing line does not appear later as unexplained waste.
Combine compatible run lengths before rounding to whole bundles. If separate deliveries or product colours prevent leftover material being shared, keep those order groups separate. Record any intentional spare bundle distinctly from the calculated minimum so the reason for the difference remains clear.
Do it in order
- Label the actual ridge and hip runs receiving cap material.
- Use surface lengths, including sloping hips.
- Enter product-specific usable bundle coverage.
- Apply remaining cuts once and round compatible runs together.
Planning boundary
The takeoff does not specify roof installation, structural performance or ventilation requirements.
Sources checked
Can I derive cap bundles from roof area?
Measure ridge and hip runs. Roof area alone does not identify the linear geometry or the selected cap coverage.
Is ridge ventilation included?
No. Ventilation selection and quantity require their own design and product inputs; this line only counts cap bundles.
