Example: 30 m of pipe with a 50 mm internal bore
Volume = π × 0.025² × 30 = 0.058905 m³, or 58.905 L. That is approximately 15.561 US gallons. If another 10 m section has a 25 mm bore, add π × 0.0125² × 10 = 4.909 L, giving 63.814 L before fittings. Calculate each size separately rather than using an averaged bore.

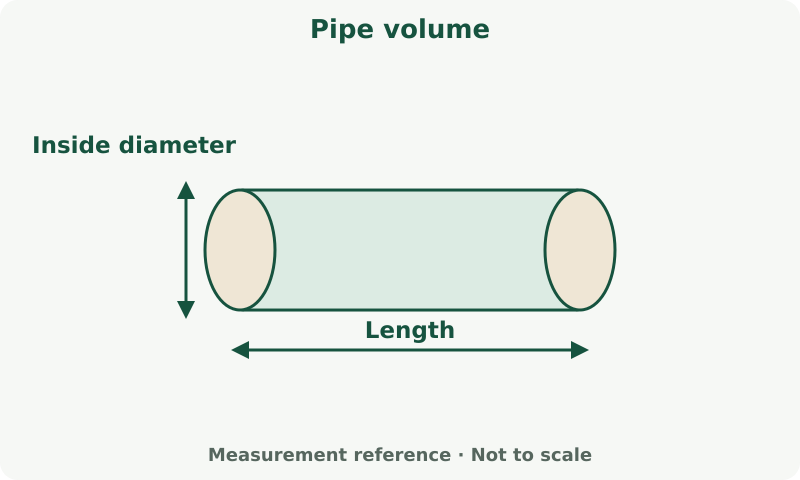

Find the product's internal dimension
Two pipes sold under a similar nominal size can have different internal bores because their wall thicknesses or sizing systems differ. Obtain the product's actual inside diameter or calculate it from verified outside diameter and wall thickness when the geometry is circular and uniform.
If outside diameter is D and uniform wall thickness is t, inside diameter is D − 2t, with all dimensions in the same unit. Do not subtract the wall once: the cross-section has a wall on both sides of the bore. Record the product and dimension source with the estimate.
Convert the bore before squaring
A 50 mm internal diameter equals 0.050 m and gives a radius of 0.025 m. Squaring millimetres and multiplying by metres without conversion creates mixed units. The clean metric approach uses metres throughout, obtains cubic metres and multiplies by 1,000 for litres.
Capacity is proportional to diameter squared. A 10% larger inside diameter produces 21% more capacity at the same length, because 1.1² = 1.21. This sensitivity is why substituting nominal diameter can matter even when the numbers look close.
Add sections instead of averaging diameters
For a system with several sizes, calculate each diameter-and-length group, then sum their volumes. An arithmetic average of diameters does not preserve the squared-area relationship and usually gives the wrong capacity.
Valves, vessels, fittings, flexible connections and equipment add their own internal volumes. Use their manufacturer information or an appropriate geometric measurement when they matter to the task. This simple straight-pipe model does not include a hidden fittings allowance.
Capacity is different from flow
Litres contained in a full pipe are not litres per second delivered through it. Flow involves additional conditions such as pressure, friction, elevation and operating state. A pipe that can hold a certain volume may be partially filled during operation or may not be suitable for the intended service.
Use this calculation for a documented capacity estimate. Fluid selection, flushing, testing, dosing and pressure-related procedures require their own specification. The calculator does not supply chemical concentrations or prove that a pipe system can be operated safely.
Do it in order
- Confirm actual inside diameter and length for each pipe-size group.
- Convert to matching length units and calculate π × radius² × length.
- Add documented fittings or vessel capacities, then convert the total to litres or US gallons.
Planning boundary
This is an internal-capacity calculation, not a pipe-sizing, pressure, flow or plumbing-system design.
Sources checked
Can I use the number printed as the trade size?
Only when it actually matches the internal diameter. Verify the product dimensions because nominal size may represent a different convention.
Does the result tell me the pump flow?
No. Capacity is a static volume; flow and pressure require a separate hydraulic assessment.
