Example: 6 × 8 m rectangular form layout
Diagonal = √(6² + 8²) = √100 = 10 m. The perimeter is 28 m and the plan area is 48 m². Each diagonal should correspond to the same 10 m geometry when the intended sides form a rectangle, subject to the project's specified verification method and tolerance. The example does not set an acceptable field tolerance.
What the 3-4-5 relationship means
A triangle with sides proportional to 3, 4 and 5 has a right angle opposite the longest side. The scale can change: 6, 8 and 10 m is the same relationship. Marking equal unit multiples avoids converting between unlike tape scales while checking a corner.
The relationship is exact mathematics, but field marks, tape sag, uneven levels and reading errors affect the measured result. Use the project's measurement method and tolerances. The calculator does not decide how much layout error your construction can accept.
Check all sides, not only one diagonal

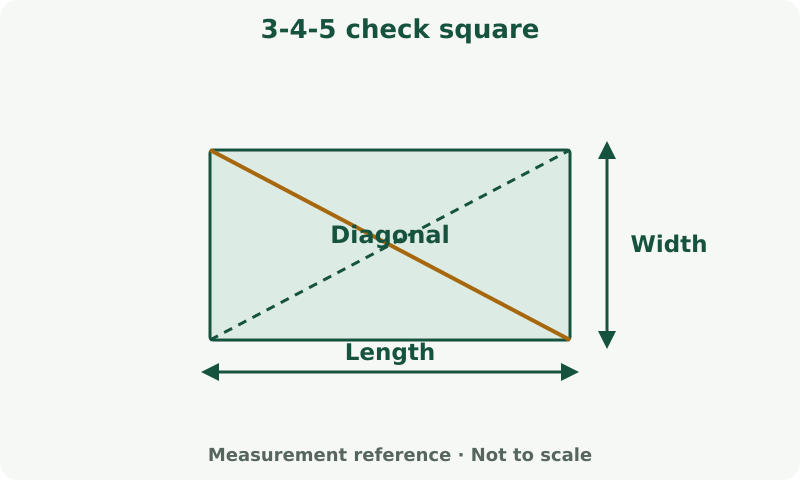

A rectangle requires the intended opposite sides and right-angle relationships. Measure both long sides, both short sides and both diagonals using consistent reference points. Equal diagonals alone do not prove every arbitrary four-sided figure is the desired rectangle.
If the diagonals differ, first check whether the side lengths or reference marks moved. Simply pulling one corner until a diagonal looks correct can change the perimeter dimensions. Recheck the full set after every adjustment rather than treating one tape reading as a final acceptance.
Use horizontal plan dimensions
The diagonal formula for a plan rectangle uses lengths in one plane. A tape following sloped or uneven ground measures a different distance from the horizontal plan distance. Do not compare those values without accounting for the geometry using an appropriate survey method.
Keep reference marks identifiable and avoid measuring to different faces of a stake or form on successive checks. Mark the intended corner point. If the drawing dimensions are to centreline, outside face or inside face, maintain that same convention throughout.
Record a check that another person can repeat
Write the intended length, width, calculated diagonal and measured values for both diagonals. Include the drawing revision and the points used. For a larger or consequential layout, use the survey control and verification process required by the project rather than extrapolating a small DIY example.
Unit consistency matters more than the display precision. Six metres and eight metres produce a ten-metre diagonal; six feet and eight feet produce ten feet. Combining a six-metre side with an eight-foot side is an entirely different triangle.
Do it in order
- Identify the intended corner reference points and side dimensions.
- Calculate the theoretical diagonal from matching units.
- Measure all four sides and both diagonals, then recheck the complete set after adjustments.
Planning boundary
This geometry aid does not replace required survey control, boundary verification or project-specific layout tolerances.
Sources checked
Does equal diagonal length alone prove a rectangle?
Not for an arbitrary quadrilateral. Check the intended side lengths and corner geometry as well.
Can I double the 3-4-5 dimensions?
Yes. Any common scale factor preserves the ratio; 6-8-10 and 9-12-15 have the same right-angle relationship.
