Calculated result
18joists
Joists to plan
Formula
LUM-JOIST-001(floor(framing width ÷ spacing) + 1) × (1 + waste)
16 joists
Baseline joists
12 ft
Joist span
216 ft
Planning linear footage
Lumber & framing calculator
Floor joist calculator
Preliminary joist count and total linear footage from framing run, span and stated spacing.
By Feroz Sheikh · Formula LUM-JOIST-001 v1.0.0 · Tested formula
Formula
LUM-JOIST-001v1.0.0Project inputs
Enter your measurements. Switching units converts the same project, including coverage and unit rates. Package yields keep the unit printed beside each field.
Refine measurements and rates at any time. Your current values are included in the material-list PDF.
Planning estimate, not engineering advice. Confirm site measurements and product specifications. Calculation limits.
This calculator turns a measured framing width and stated on-center spacing into a preliminary joist count and total linear footage.

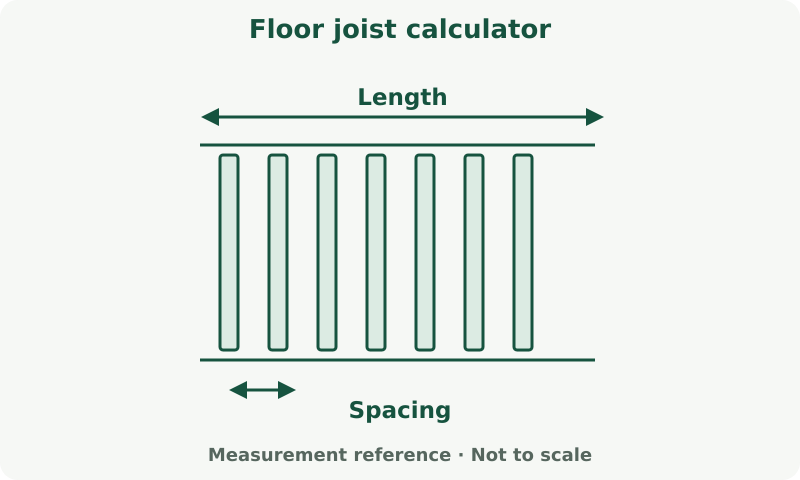

- Enter the joist run and perpendicular framing width.
- Use the specified on-center spacing from the approved design.
- Verify joist size, grade, span, hangers and blocking independently before purchasing.
Add your project costs
Enter supplier prices and any labour, equipment or delivery costs. Pick a currency — badges, inputs, and totals follow.
Costs use the stick or sheet rate you type. Construclytic does not fetch lumber-yard prices. Hangers, hardware and labour stay companion lines.
How this calculator works
A transparent floor joist calculator takeoff.
Feroz SheikhWritten by Feroz Sheikh · founder
This calculator turns a measured framing width and stated on-center spacing into a preliminary joist count and total linear footage.
LUM-JOIST-001 counts joists from the framing run, span and stated spacing, then total linear footage. It does not pick a species, depth or a span table. Rim joists and blocking stay extras.
Worked example. Example: a 20 ft framing run at 16 in spacing requires 16 baseline joists. At a 12 ft preliminary run plus 10% allowance, the tool shows 16 joists and 211.2 linear feet to plan.
See the example inputs and calculated result
This separate example uses the calculator's starting values in imperial units. It stays unchanged when you edit the tool above. Example rates, yields and dimensions are assumptions, not recommendations for your project.
| Input | Example value |
|---|---|
| Joist span | 12 ft |
| Framing run width | 20 ft |
| Joist spacing | 16 in |
| Waste factor | 10 % |
Example result: Joists to plan — 18 joists.
(floor(framing width ÷ spacing) + 1) × (1 + waste)
Use the labelled units above when reproducing this example. To work in metric, switch the calculator to Metric; applicable measurements are converted, while product-specific units remain labelled.
- 1. Enter the joist run and perpendicular framing width.
- 2. Use the specified on-center spacing from the approved design.
- 3. Verify joist size, grade, span, hangers and blocking independently before purchasing.
Field notes that change the number
- Spacing is on-center. A 12 in kitchen floor is not a 16 in bedroom.
- Span is the clear or the design span you were given — this tool does not choose it.
- Stairs openings are extra trimmer joists.
Common mistakes
- Using wall-stud spacing on a floor.
- Hiding rim and blocking inside the joist count.
- Calling this a span-table approval.
Need the broader workflow? Read the lumber & framing planning guide.
How-to: How to count wall studs
Questions
Questions about floor joist calculator
Does this select a joist size?
No. Span, loading, species, grade and local requirements must be determined by the responsible design process.
Does it include blocking?
No. The allowance is visible, but detailed blocking and bridging must be separately taken off.
What is the formula ID?
This floor joist calculator publishes formula LUM-JOIST-001, version 1.0.0. The ID stays on the result and on the estimate line.
