Example: a 40 × 9 ft wall
Gross area is 360 ft². Deduct one 21 ft² door and two 15 ft² windows: 360 − 21 − 30 = 309 ft². An illustrative 10% cutting allowance gives 339.9 ft². At 32 ft² per panel, 339.9 ÷ 32 = 10.621875, so the area estimate is 11 sheets. The equivalent net area is about 28.707 m².
Separate panel count from insulation selection
The sheet calculator does not choose thickness, thermal resistance, facing, strength or suitability for an assembly. Read those requirements from the project specification and the selected manufacturer’s data. Two panels with identical length and width may have very different uses, so do not combine them in one purchasing line.
Owens Corning’s document library separates product data by insulation type. Use the document for the actual product code on the quote. Record panel dimensions with that code before calculating count; a stock size copied from another product can change the order.
Use real openings instead of standard deductions

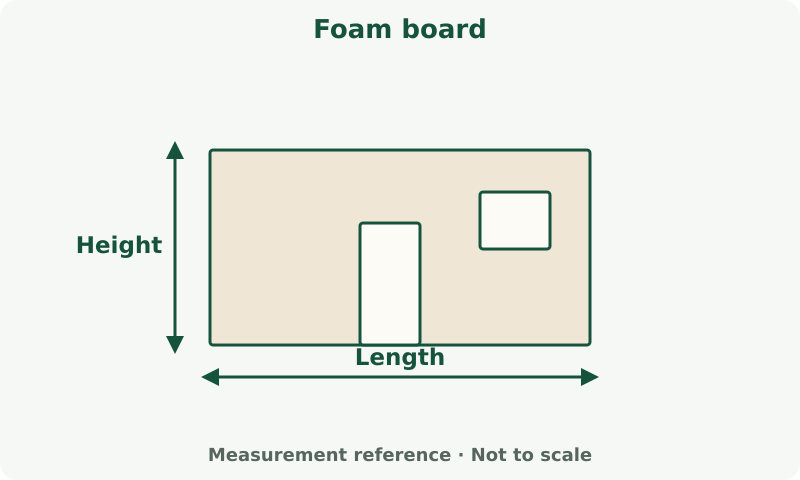

Multiply the treated wall length by its height. For a gable or stepped wall, split the elevation into measured shapes and calculate each net area. Deduct the openings that genuinely omit insulation. Insulated returns around doors and windows are additional surfaces and should be measured separately.
Door and window counts multiply their area fields. If openings have different sizes, calculate their total area outside the repeated-size fields or run separate groups. A nominal window label is not always the dimension of the surface being omitted. Keep the opening schedule with the sketch.
Check what a cut leaves behind
An opening removed from net area does not guarantee that its offcut can be reused. The remaining shape may be too narrow, damaged or incompatible with the required layout. Sketch the panel rows and identify which offcuts have a specific destination before crediting them.
Treat the waste percentage as an explained allowance for this layout, not an automatic guarantee. A long uninterrupted wall and a wall with many small openings can have equal net area but different cut loss. Do not increase wall dimensions and add waste for the same cuts.
Keep accessories visible
Panel tape, compatible adhesive, fasteners, edge details and coverings are separate quantities. The panel count does not calculate them. List the accessory product and its own coverage or spacing basis rather than assuming that one bundle includes everything needed.
Before ordering, check pack size as well as sheet count. If the supplier sells only full packs, convert the calculated sheets into packs and show both numbers. Retain any deliberate spare panels as a separate decision, especially when several different thicknesses are on the same job.
Do it in order
- Record the specified panel and face dimensions.
- Measure the wall and actual opening areas.
- Review panel rows and credible offcut reuse.
- Apply cutting allowance and round to sheets, then supplier packs.
Planning boundary
The result counts panels; it does not establish thermal, structural, moisture or fire performance.
Sources checked
Does eleven sheets prove the layout fits?
No. Check panel placement, opening cuts and the required joint details before using the area count as an order.
Are thicker sheets counted differently?
Thickness does not change face-area arithmetic, but different products and thicknesses must remain separate specification and purchasing lines.
